Challenge of the month: ACCT with special geometry

Accelerator:

Medical accelerator

Beam:

  • Proton
  • Current from 1 µA to 30 µA

Customer need

Sensor with an internal diameter of 7 mm and with the smallest axial length possible

Sensor being bolted on different flange sizes on each side

Solution

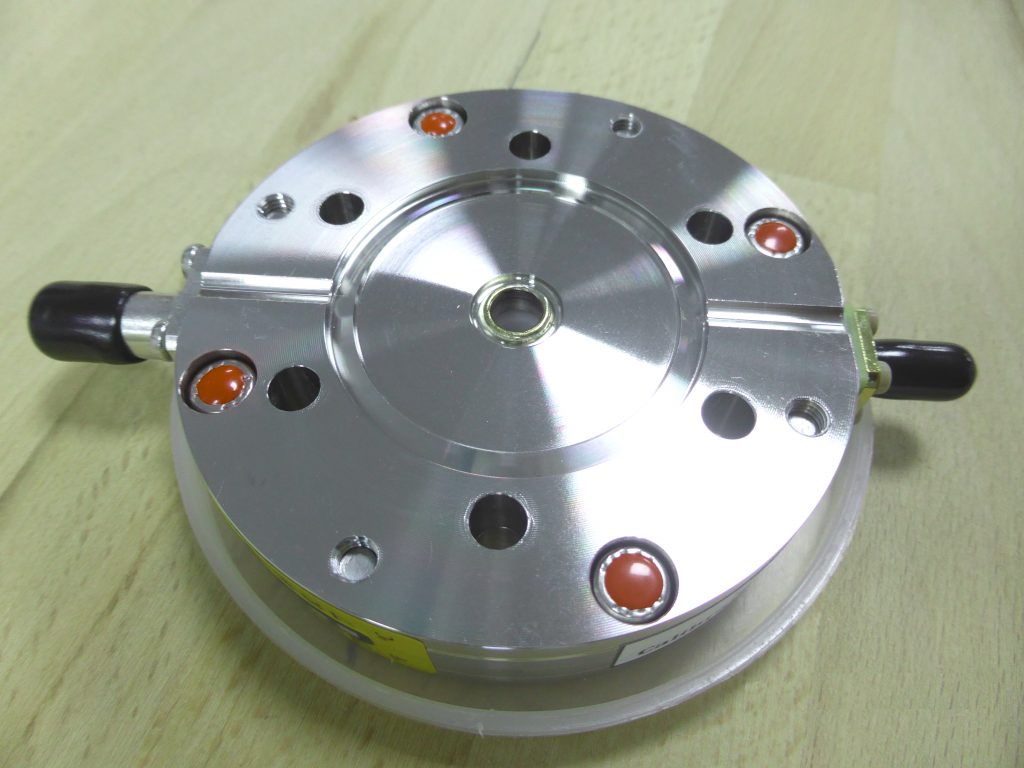

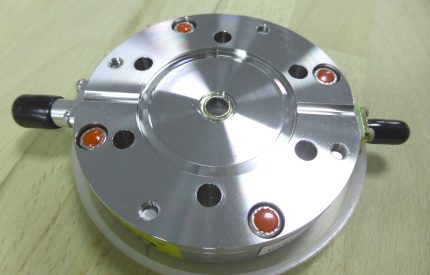

Design of special flanges: one side to be bolted to a CF1″1/3 flange, the other side to be bolted to a CF2″3/4 flange

The whole sensor has a 7 mm inner diameter and a 20 mm axial length

Our abilities

Understand the customer needs, design a very customized instrument geometry, get customer satisfaction
