We propose current transformers and/ or analog electronics, according to your measurement type and beam structure. Contact us for technical advices.
To find your product, please filter the diagnostic you wish and the beam you have. Or please scroll the product list to get more detailed information
Diagnostics
Beam Structure

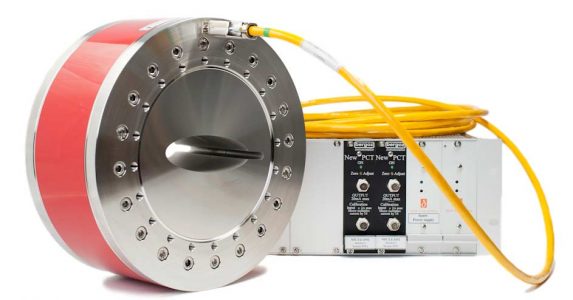

NPCT
Read moreNon-destructive DC beam current measurement- Full Scale Range ±20 mA, ±200 mA, ±2 A and ±20 A
- Resolution down to 0.5 µA rms/√(Hz)
- Output Bandwidth from DC to 10 kHz (-3dB)
- Linearity error ≤ 0.1 %

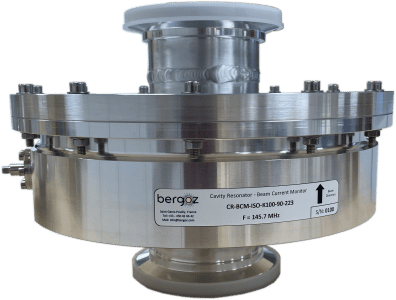

CR-BCM
Read moreCurrent measurement with sub-nanoamperes resolution of CW beams and macropulses- Beam repetition frequency from 30 MHz to 175 MHz
- Response time < 1 µs
- 100 mm axial length
- 300 mm external diameter
ACCT

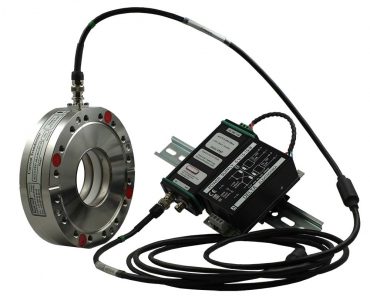

Read morePrecise waveform measurement of long pulses- Full Scale Range from ±1 mA to ±2 A
- Single Range or 3 Selectable-Range
- Resolution ≤ 1.5 µArms
- Droop ≤ 2 %/ms
- Bandwidth from 3 Hz to 1 MHz (-3dB)
CWCT & BCM-CW-E
Read morePrecise average current measurement of CW beams or macropulses- Resolution of 1 µArms
- With Low Current option: ≤ 8 nA rms resolution
- Operating Frequency from 15 MHz to 200 MHz
- Response Time of 1 µs
FCT
Read moreVery fast non-destructive pulsed or CW beams observation- Sensitivity from 0.25 to 5 V/A
- Bandwidth up to 1.5 GHz
- Rise time ≤ 230 ps
ICT & BCM-IHR-E

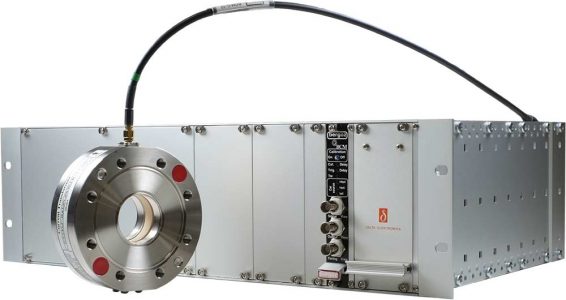

Read moreBeam charge measurement- Sensitivity (ICT alone) from 0.25 to 10 Vs/C
- Full Scale range from 800 pC to 400 nC
- Noise on single bunch of 0.55 pC

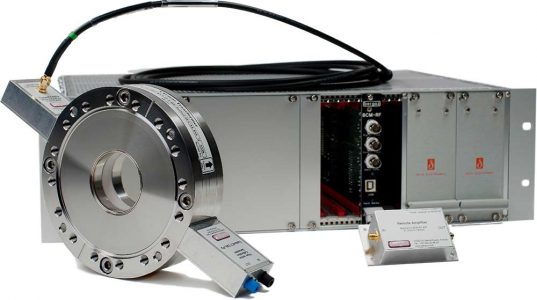

Turbo-ICT & BCM-RF-E
Read moreUltra short bunch and very low charge measurement- Bunch length ≤ 100 ps
- Resolution of 10 fCrms or 1 % of a single pulse charge
- Bunch repetition rate ≤ 2 MHz
- Possible to get digitized output with BCM-RF-DAQ
IPCT

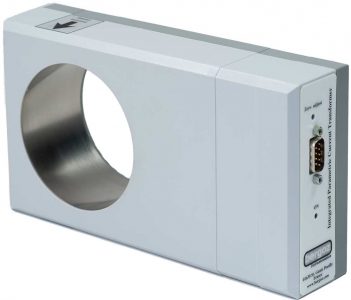

Read moreIndustrial non-destructive DC current measurement- Full Scale Range from ±1 mA to ±20 A
- 10 µA resolution over 1 second
- Output Bandwidth from DC to 3.8 kHz (-3dB)
- Aperture of 82 mm (3.23”)
MX-BPM
Read moreMulti-pass or CW beam position measurement- Resolution X & Y down to 1 µm
- Dynamic Range > 75 dB
- Operating Frequency from 60 MHz to 500 MHz

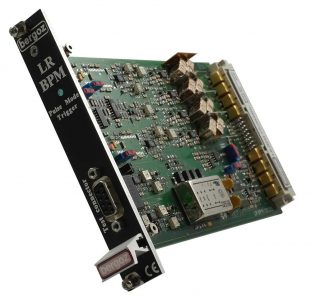

LR-BPM
Read moreLog-Ratio BPM Electronics- Resolution X & Y Pickup aperture radius / 10'000
- Dynamic Range > 50 dB
- Operating Frequency ≤ 500 MHz

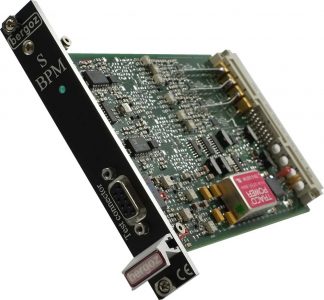

S-BPM
Read moreSingle-pass bunch position measurement for S-band beams- Resolution X & Y is pickup aperture radius / 10'000
- Dynamic Range > 50 dB
- Operating Frequency of 2.856 GHz and 2.999 GHz

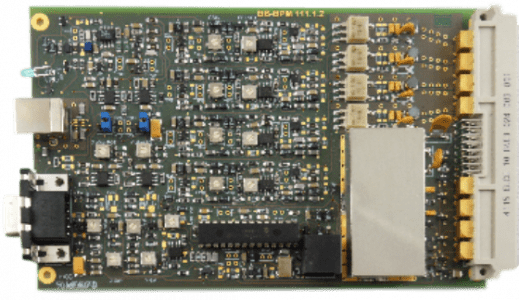

BB-BPM
Read moreSingle-pass bunch position measurement for low repetition rate- Resolution X & Y is pickup diameter / 1000
- Dynamic Range > 70 dB
- Operating Frequency from 200 kHz to 25 MHz
BLM

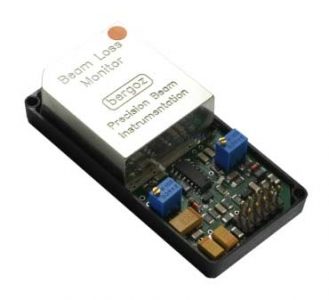

Read moreLow-cost predicted beam loss counting- Single particle detection efficiency > 30 %
- Spurious count rate < 0.1 Hz
- Maximum count rate > 10 MHz

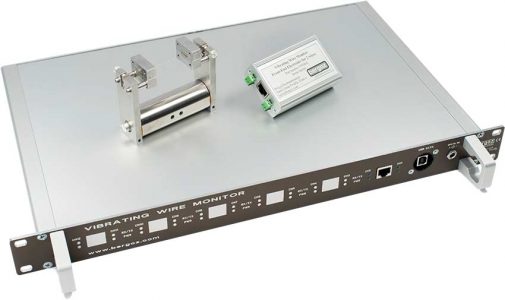

VWM
Read moreVibrating Wire Monitor- Dynamic range > 1E6
- Resolution for proton beam 3pA
- Resolution for electron beam 70pA
No products found
