Challenge of the month: In-flange NPCT without outer flanges

Accelerator:

MAX IV

Beam:

  • Electrons (3 GeV)
  • CW or macropulses
  • 500 mA

Customer need

NPCT with a special design due to a sensor non-standard installation in the 3 GeV storage ring.

Solution

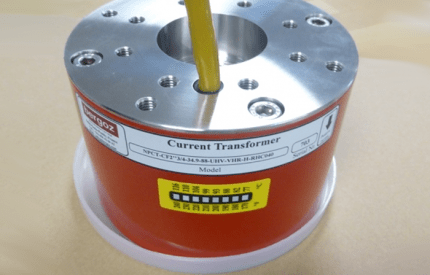

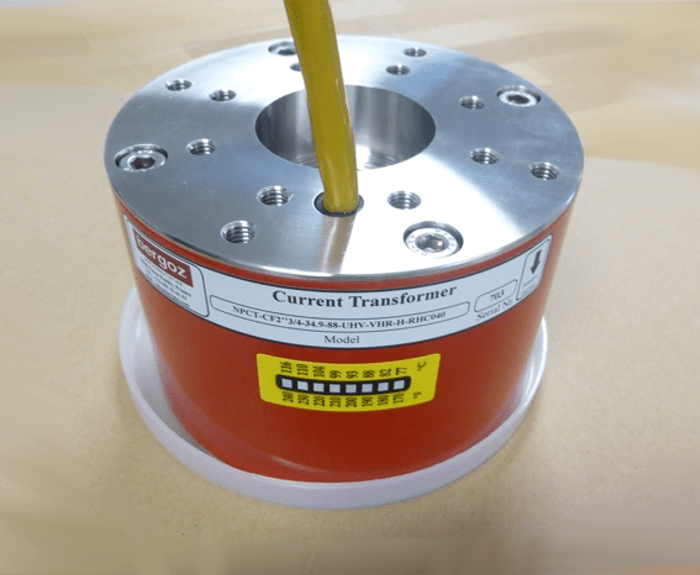

Specific design for the In-flange NPCT by removing the outer flanges. No connector installed on the sensor, instead a cable is going out of one NPCT side.

Our abilities

Design in collaboration with the customer, keep the performances despite modifying the product, get high customer satisfaction
