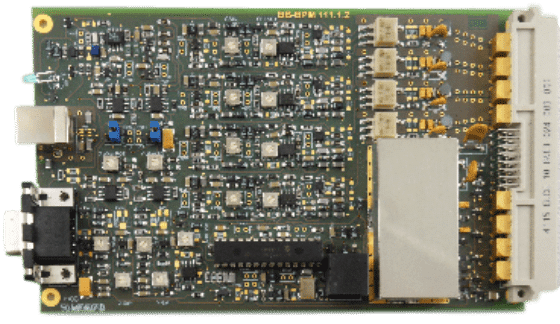

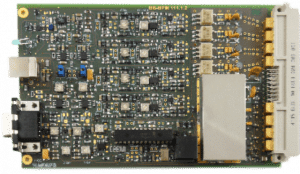

Single-pass bunch position measurement for low repetition rate


Based on the pioneering work of Robert E. Shafer at Los Alamos Laboratory,
the Log-Ratio BPM derives beam position from logarithm of the ratio of opposite pickup signals: Log(A/B).

Position measured by this method is more linear, over a wider range, than difference-over-sum.


Main features

  • Resolution X & Y is pickup diameter / 1000
  • Dynamic Range > 70 dB
  • Operating Frequency from 200 kHz to 25 MHz



User's manual


Technical notes

Current price list

Front-end Filter and Amplifier BB-BPM-FEFA

Four BB-BPM-FEFA are required for each BB-BPM plug-in module, one per pickup.

BB-BPM-FEFA has been specifically developed to measure low intensity ion beams.

It is best to install it very close to the stripline or shoebox pickups to minimize capacitive loading.

Control of BB-BPM-FEFA gain is done by FO fiber optics, one per front-end amplifier.

FO high level switch the gain from 0dB to nominal value.
A single control FO can be daisy-chained to all front-end amplifiers.

The FO signal is under user’s control.


  • The BaseBand BPM is a log amplifier-based beam position monitor. It operates up to 25MHz.
  • Cable length matching not required: pickup signals don’t need to be in phase
  • Output signals are analog voltages:
    • X&Y narrowband outputs for close orbit measurement
    • X&Y wideband outputs for machine study, to see orbit changes or instabilities during the ramp
  • To prevent noise pickup by way of ground loops:
    • The front-end amplifiers and filters are powered via their RF output coaxial cables
    • The front-end amplifiers gain is controlled by fiber optic signals
