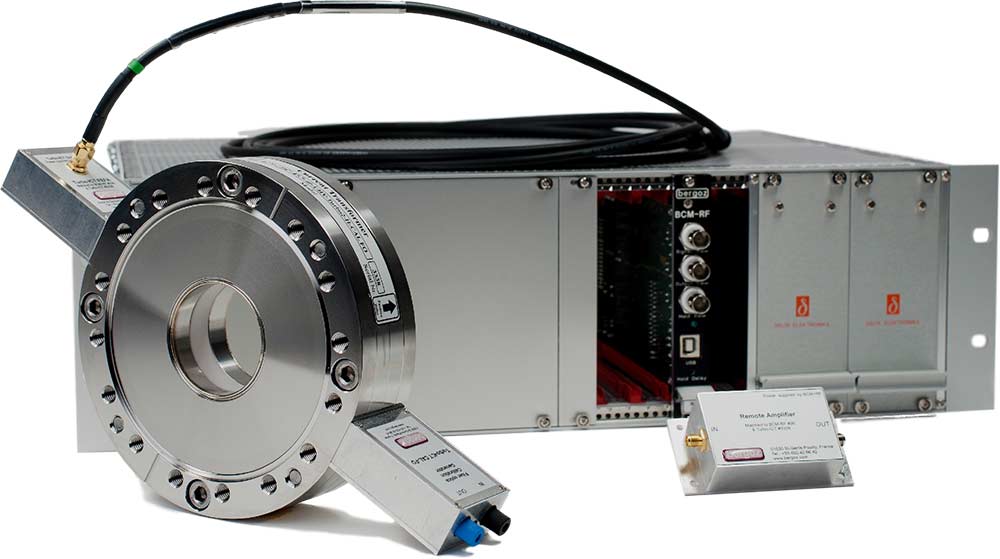

The Turbo-ICT current sensor and BCM-RF-E electronics receiver perform bunch charge or average current measurements with low noise and high accuracy.
Turbo-ICT relies on the detection of a single spectral ray of the beam bunch. The beam bunch being very short, it behaves like a Dirac. So, all spectral rays have the same intensity.
Turbo-ICT and BCM-RF-E operate at 180 MHz, a rather quiet zone in the overall frequency spectrum.
Main features
- Bunch length ≤ 100 ps
- Resolution of 10 fCrms or 1 % of a single pulse charge
- Bunch repetition rate ≤ 2 MHz
- Possible to get digitized output with BCM-RF-DAQ
Downloads
Datasheets
User's manual
Papers
Technical notes
Technical Drawings
In-flange
- Turbo-ICT-CF''3/8-22.2-40-UHV-CALFO
- Turbo-ICT-CF4''1/2-34.9-40-UHV-CALFO
- Turbo-ICT-CF4''1/2-38.0-40-UHV-CALFO
- Turbo-ICT-CF6''-47.7-40-UHV-CALFO
- Turbo-ICT-CF6''-60.4-40-UHV-CALFO
- Turbo-ICT-CF6''3/4-96.0-40-UHV-CALFO
- Turbo-ICT-CF8''-96.0-40-UHV-CALFO
- Turbo-ICT-CF10''-147.6-40-UHV-CALFO
- Turbo-ICT-CF12''-198.4-40-UHV-CALFO
In-vacuum
Current price list
Two packaging types for the Turbo-ICT sensor
Turbo-ICT
- Turbo-ICT is mounted directly on the beam line
- UHV compatible to 1E-11 mbar
- Improved radiation tolerance on option
- Ceramic gap vacuum-brazed over kovar transition
- Material AISI-304, 316LN on option
- Arbitrary shape aperture on option
- 1 core, 2 cores or 4 cores on option
- Calibrated charge generator on option
Turbo-ICT-VAC
- Turbo-ICT-VAC is installed in a laser-plasma vacuum enclosure
- Vacuum compatible to 1E-7 mbar
- Calibrated charge generator option not available
- 1 core or 2 cores on option
BCM-RF-E
BCM-RF-E allows two modes of operation:
- Track-Continuous mode for CW beam and long macropulses.
- Sample&Hold mode for single bunch, with auto trigger feature.
Output is logarithmically proportional to beam current or bunch charge.
BCM-RF-E inserts into a wired station of BCM-RFC, the 19” 3U RF-shielded chassis including power supplies.
Up to 10 stations per chassis can be installed.
Main features
- 80dB measurement range without range switching
- Resolution 1% / accuracy 4% of measured value
- DC Output voltage, logarithmically proportional to input current or input charge
- USB 2.0 controls
BCM-RF-DAQ
Digitizer tailored for the BCM-RF-E
It can acquire the main output of the
BCM-RF-E, whether it is in Sample &
Hold or Track-Continuous mode.
It can be used with any programming
language to fit to your acquisition
chain, or with our EPICS interface
software.
Main features
- Sampling rate 20 times larger than BCM-RF-E bandwidth
- 16-bit ADC
- Installed in the same chassis as the BCM-RF-E
- EPICS, Python and LabVIEW compatible
